MAG B660 TOMAHAWK EVA e-PROJECT

MAG B660 TOMAHAWK EVA E-PROJECT

• Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, up to 6200+(OC) MHz
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

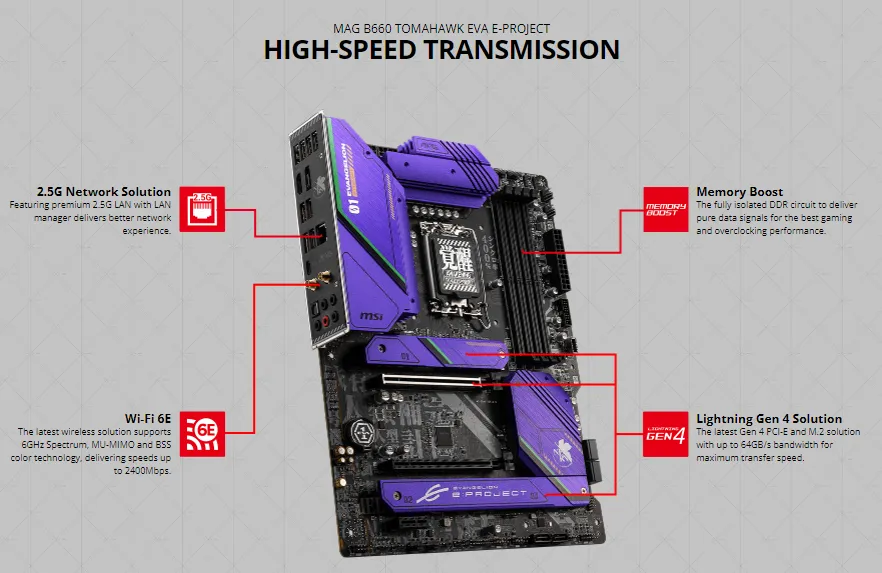

FEATURESExtended Heatsink DesignMSI extended PWM heatsink and enhanced circuit design ensureseven high-end processors to run in full speed.Latest DDR5 MemoryA huge step of DDR performance enhancement with the latestDDR5 memory and MSI Memory Boost technology.Lightning Gen4 SolutionThe latest Gen4 PCI-E and M.2 solution with up to 64GB/sbandwidth for maximum transfer speed.M.2 Shield FROZRM.2 thermal accessory. Keeps M.2 SSDs safe while preventingthrottling, making them run faster.Wi-Fi 6EThe latest wireless solution supports 6GHz spectrum, MU-MIMOand BSS color technology, delivering speeds up to 2400Mbps.2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager to deliver betternetwork experience.Lightning USB 20GBuilt-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed,4X faster than USB 3.2 Gen 1.Core BoostWith premium layout and fully digital power design to supportmore cores and provide better performance.

SPECIFICATIONSModel Name MAG B660 TOMAHAWK EVA e-PROJECTCPU Support Supports 12th Gen Intel® Core™ Processors, Pentium® Goldand Celeron® ProcessorsCPU Socket LGA 1700Chipset Intel® B660 ChipsetGraphicsInterface1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slotSupports AMD® CrossFire™ TechnologyDisplay Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4– Requires Processor GraphicsMemory Support 4 DIMMs, Dual Channel DDR5-6200+ (OC)Expansion Slots 1x PCIe 3.0 x1 slotStorage 2x M.2 Gen4 x4 64Gbps slots, 1x M.2 Gen4 x2 32Gbps slot,Support Intel® Optane™ Technology,6x SATA 6Gb/s portsUSB ports 1x USB 3.2 Gen 2x2 20Gbps (Type-C),5x USB 3.2 Gen 2 10Gbps (4 Type-A + 1 Type-C),2x USB 3.2 Gen 1 5Gbps (Type-A),8x USB 2.0LAN 1x Realtek® RTL8125BG 2.5Gbps LANWireless /BluetoothIntel® Wi-Fi 6E module, Bleutooth 5.2Audio 8-Channel (7.1) HD Audio

MPG GUNGNIR 110R EVA e-PROJECT

• The front panel’s LED light strip is capable of showing an abundance of colors, stunning onlookers with its striking looks.
• The MPG GUNGNIR 110R EVA e-PROJECT's ARGB lighting is fully supported by MSI Mystic Light.
• Use the 1 to 6 ARGB LED control board to have more attractive ways to decorate your gaming rig.

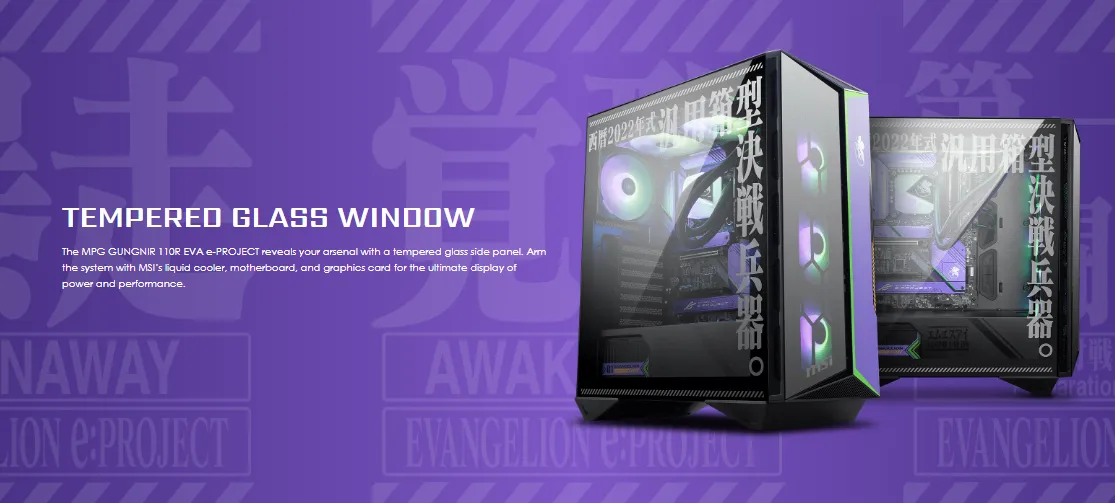

• Premium-grade 4mm thick tempered glass that guarantees window durability and viewing capability.
• The MPG GUNGNIR 110R EVA e-PROJECT can mount up to 6 fans.
• The magnetic filter on top is designed to give users an easy un-installing and cleaning experience.

FEATURESOptimized Air FlowCan install up to 6x system fans, providing ventilation and stableperformance to the whole system.Front USB 3.2 Gen 2x2 Type CSynergize with a compatible MSI motherboard through bridgingwith a USB 3.2 Gen 2x2 Type-C port for convenient access.1 to 6 ARGB LED Control boardBundle with 1 to 6 ARGB LED control board that gives you moreways to decorate your gaming rig.ARGB FanBuilt-in ARGB fan with striking lighting and vivid lighting effects.Tempered GlassPremium-grade 3mm thick tempered glass that guaranteeswindow durability and viewing capability.Magnetic FilterThe magnetic dust filter on top is designed to give users an easyun-installing and cleaning experience.

SPECIFICATIONSProduct Name MPG GUNGNIR 110R EVA e-PROJECTForm Factor Mid-TowerMotherboard Form Factor Support ATX / Micro-ATX / Mini-ITXI/O Ports2 x USB 3.2 Gen 1 Type-A (5Gbps)1 x USB 3.2 Gen 2x2 Type-C (20Gbps)1 x Audio-out1 x Mic-inDrive Mount Support 2 x 2.5”2 x 2.5" / 3.5”Expansion Slots 7Maximum GPU Length 340 mm / 13.39 inchesMaximum CPU Cooler Height 170 mm / 6.69 inchesPower Supply Support ATXMaximum PSU Length 250 mm / 9.84 inchesFan Size SupportFront: 3 x 120 mm / 2 x 140 mmTop: 2 x 120 mmRear: 1 x 120 mmPre-installed Fan Size Front: 3 x 120 mmRear: 1 x 120 mmPre-installed Fan Type Front: 3 x ARGB FanRear: 1 x ARGB FanRadiator Size Support Front: 120 / 140 / 240 / 280 / 360 mmTop: 120 / 240 mm Rear: 120 mmDimensions (DxWxH) 430 x 215 x 480 mm / 16.93 x 8.46 x18.9 inches

MAG A650BN EVA e-PROJECT

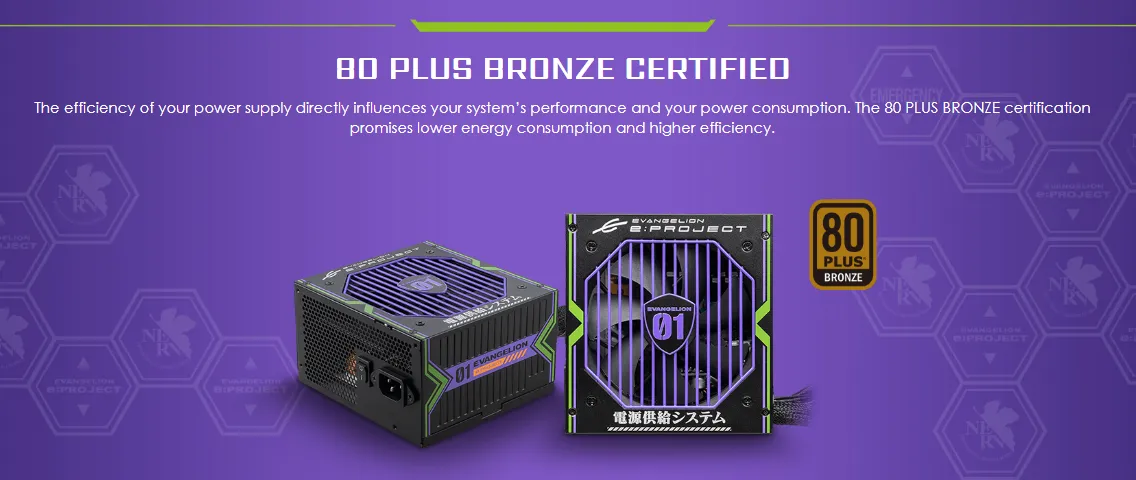

• 80 Plus Bronze certified for high efficiency
• 120mm Low Noise Fan
• Industrial level protection with OVP,OCP,OPP,OTP, SCP
• DC-DC Circuit Design
• Active PFC design

SPECIFICATIONSProduct Name MAG A650BN EVA e-PROJECTForm Factor ATXRated Wattage 650WEfficiency Rating 80 PLUS Bronze (up to 85%)Modular NoFan Size 120 mmFan Bearing Sleeve BearingDimensions (DxWxH) 150 x 140 x 86 mmPFC Type Active PFCInput Voltage Range 100~240 VACInput Frequency Range 50~60 HzProtection OCP / OVP / OPP / OTP / SCPATX (24 pin) 1EPS (8 pin) 1PCI-E (6+2 pin) 2SATA (15 pin) 5MOLEX (4 pin) 2FDD (4 pin) 1

MAG CORELIQUID C240 EVA e-PROJECT

• The MAG CORELIQUID C Series liquid cooler provides out of box support for LGA 1700.
• The pump has been integrated into the radiator for sound dampening and noise reduction.
• A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
• A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

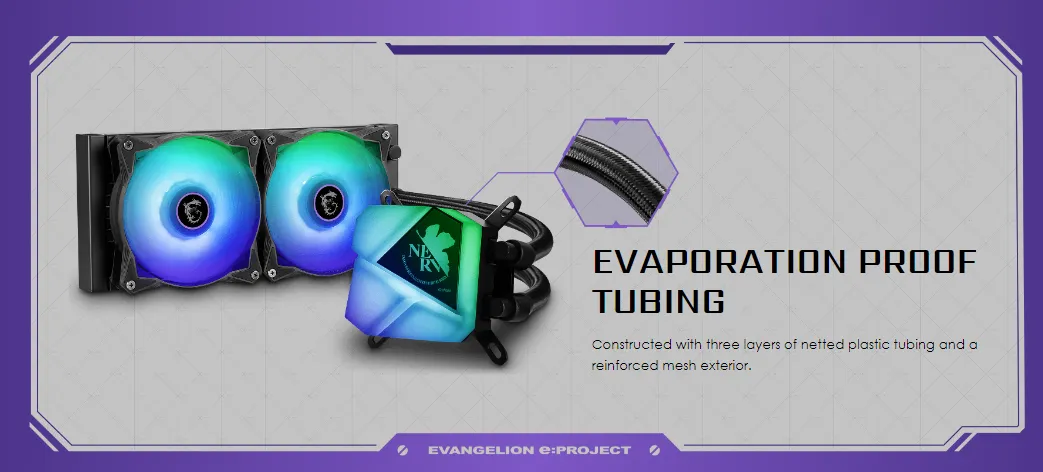

• Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

SPECIFICATIONSRadiator Dimensions(WxDxH) 276 x 120 x 27mm / 10.87 x 4.7 x 1.06 inchesRadiator Material AluminumNumber of Fans 2Fan Dimensions(WxDxH) 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inchesFan Speed 500 ~ 2000 RPMFan Air Flow 78.73 CFMFan Noise Level 14.3 ~ 34.3 dBAFan Bearing Two Ball BearingFan Life Expectancy 70,000 hoursFan Rated Current 0.15 AFan Power Consumption 1.8 WPWM Mode YesCable Length (PWMCable) 550±10 / 350±10mm; 21.7±0.4 / 3.94±0.2 inchesFan Lighting ARGBPump Life Expectancy 100,000 hoursPump Noise Level 18 dBAPump PowerConsumption 4.08WPump Speed 4200 RPM +- 10%Cold Plate Material CopperBlock Dimensions(WxDxH) 70.5 x 70.5 x 52 mmIntel Socket Support LGA 1150/1151/1155/1156/1200/1700LGA 1366/2011/2011-3/2066AMD Socket Support AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
