Tenda SG108 Switch 8-Port Gigabit Desktop Switch
SKU hub-ten-sg100g
₱1,080.00
In stock
1
Product Details
- Brand Name:Tenda
- Model Number:Tenda SG108
- Certification:FCC, CE, RoHS, WEEE
- Transmission Rate:10/100/1000Mbps
- Switch Capacity:1.6Gbps
- VLAN:No
- Function:Stackable
- Switch Type:Ethernet
- Communication Mode:Full-Duplex & Half-Duplex
- Package:YES
- Standards:IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab
- Power Input:100-240V ~ 50 / 60Hz
- Transfer rate:10/100/1000M
What it does

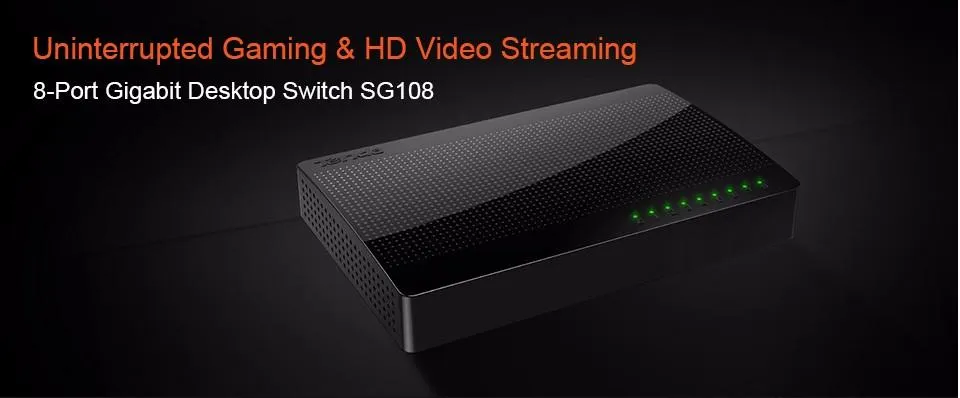

SG108 is a 8-Port Gigabit Desktop SOHO switch. It provides 8 10/100 / 1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. Compared with a 100M switch, it enhances transmission speed up to 10 times, eliminating the bottleneck of cascading bandwidth. It supports desktop installation and wall-mounting. Without configuration, it can be played once plugged.
With the stable connectivity and easy-to-use features, it is perfectly fit for the networking of school dormitories, small offices, home offices and Video Surveillance.
Main Features
• 8 * 10/100 / 1000Mbps auto-negotiation ports
• Auto MDI / MDIX simplifies networking and maintenance
• Full wire speed forwarding ensures a smooth network experience
• Flow control for full duplex and backpressure for half duplex avoids frame dropping as port blocked
• Adopts store-and-forward mechanism and provides 4K MAC address table
• 9K Jumbo frame improves the forwarding speed of large data
• Adopts green and environmental ABS material, improving heat resistance and heat dissipation
• Allows IP camera accessing and provides a running and clear image
• Desktop and wall mounting simplify installation
Gigabit speed
Video transmission in seconds
Gigabit speed: In full duplex mode, the transmission speed can be 2000Mbps, 10x speed of fast ethernet, and data packets are forwarded at full wire speed.
Stay online for 7* 24 hours and no packet loss
With store and forwarding mode, MAC address auto learning and auto aging, SG108 can transfer data without loss to ensure stable and blazing fast Wired network performance.
Stylish and Exquisite Design

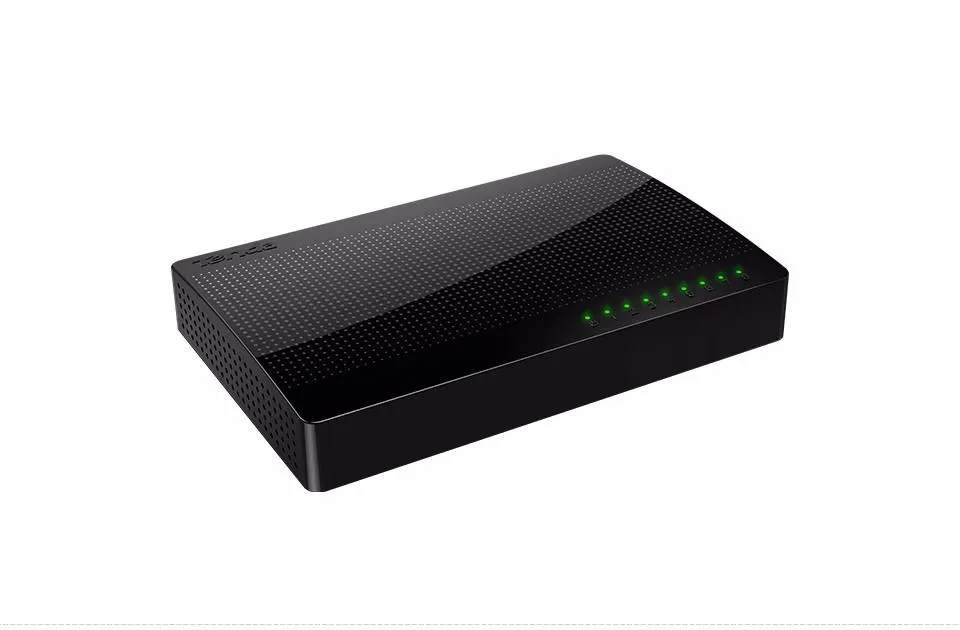

SG108 is nice and small and will not take up much desk or floor space. With desktop or wall-mounting design design, you can put SG108 anywhere as you want and move flexibly. It comes in a pretty dome-shaped pattern Plastic case. It will fit equally well in any desktop decor. Not only for Wired network use, SG108 also can be a home ornament.
Plug and play,
No Configuration Required

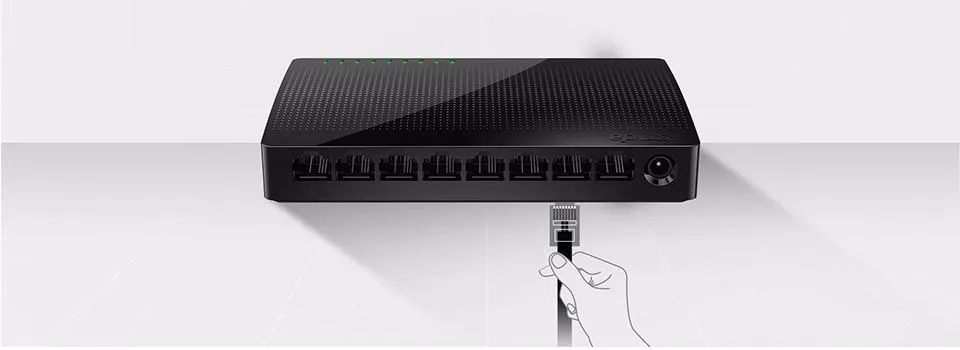

Wired network is available after plug ethernet cable in no time effortlessly. No matter you are a tech-savvy enthusiast or a first-time user, SG108 is super easy and intuitive to setup without time-consuming operations. We made setup quick and easy so you can start experiencing the best of the internet with SG108.
Networking standards: |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
Fixed ports |
8*10/100/1000Mbps auto-negotiation RJ45 Ethernet ports, supports auto-flip |
Transmission medium 10BASE-T: |
3 class lines or better; 100BASE-TX / 1000BASE-T: 5 kinds of lines, super-Category 5 or better |
Indicators: |
8*10/100/1000Mbps Link/Act Connection / status lights; 1 * power supply lamp |
Power: |
Power Input: 100-240V ~ 50/60Hz Power output: 9V/0.6A |
Forwarding Rate 10Mbps: |
14880pps; 100Mbps: 148800pps; 1000Mbps: 1488000pps |
Switching features: |
Store and forward mode; MAC address self-learning and updating; 16Gbps backplane bandwidth
|
Temperature Operating: |
0°C~ 45°C |
Storage Temperature: |
-40°C~ 70°C |
Humidity Operating: |
10% to 90% non-condensing |
Storage humidity: |
5% to 90% non-condensing
|
Packing Content: |
1 * Quick Installation Guide (including warranty card); 1 * 8 Gigabit Desktop Switch; 1 * Power Adapter |
System Requirements: |
Supports IEEE802.3/u/x/ab network devices; network adapter; Windows 10, Windows 8, Windows7, windows XP, Linux, MAC OS |
